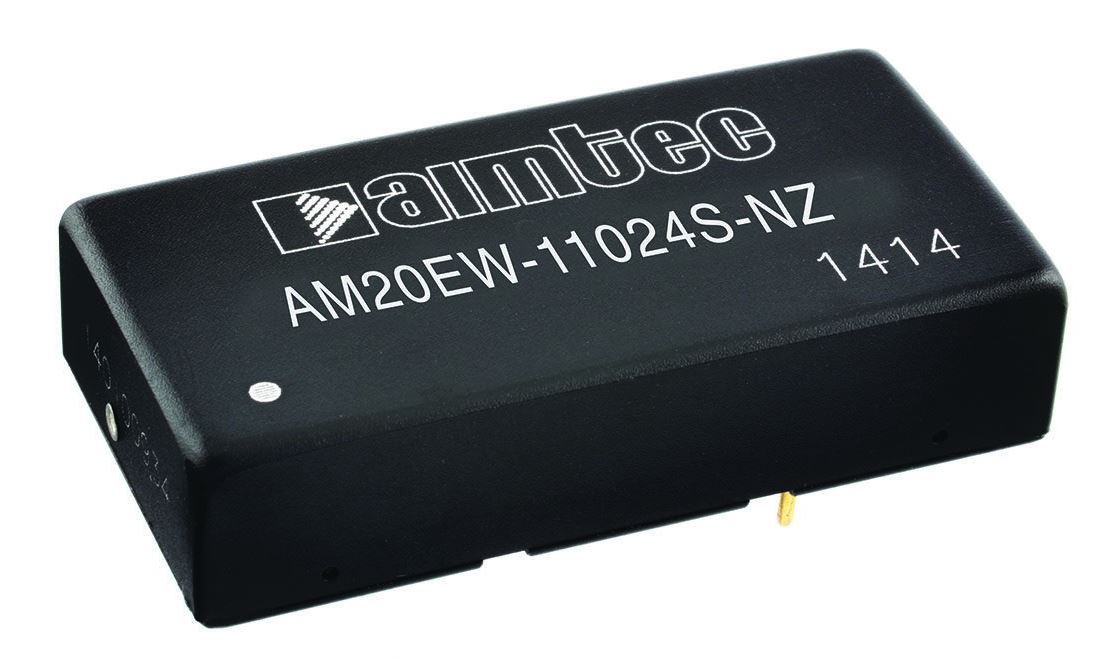

AM20EW-NZ

171 models

DC/DC Isolated Series

Efficiency up to 90% •On/Off Remote Control •Ultra-wide 4:1 Input range •Over Voltage Protection •No load consumption =0.15W •Output Isolation 1500 & 3000VDC •Operating Temperature: -40°C to +85°C •Over Current protection •Input under voltage lockout •Continuous short circuit protection
Standard DC/DC Isolated - RoHS


Wattage20
Input voltage40~160VDC, 9~36VDC, 18~75VDC
Output voltage±5, ±9, ±12, ±15, 3.3, 5, 9, 12, 15, 24
Output TypeDual, Single
Package2x1
Isolation (VDC)1500 & 3000VDC
Temp (°C)-40 to +85°C
DatasheetDownload


Select a specific product to see stock availability in your region

171 Records
1 2 3 4 All
Product

Power
(W)
Input
Voltage (V)
Output
Voltage
Max Output
Current(A)
Package

Temp. °C

AM20EW-11003SH22-NZ
2040~160VDC3.352x1-40 to +85°C
AM20EW-11003SH22-NZ-K-ST
2040~160VDC3.352x1-40 to +85°C
AM20EW-11003SH22-NZ-K-STD
2040~160VDC3.352x1-40 to +85°C
AM20EW-11003SH22-NZ-ST
2040~160VDC3.352x1-40 to +85°C
AM20EW-11003SH22-NZ-STD
2040~160VDC3.352x1-40 to +85°C
AM20EW-11005SH22-NZ
2040~160VDC542x1-40 to +85°C
AM20EW-11005SH22-NZ-K-ST
2040~160VDC542x1-40 to +85°C
AM20EW-11005SH22-NZ-K-STD
2040~160VDC542x1-40 to +85°C
AM20EW-11005SH22-NZ-ST
2040~160VDC542x1-40 to +85°C
AM20EW-11005SH22-NZ-STD
2040~160VDC542x1-40 to +85°C
AM20EW-11009S-NZ
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11009S-NZ-K
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11009S-NZ-K-ST
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11009S-NZ-K-STD
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11009S-NZ-ST
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11009S-NZ-STD
2040~160VDC92.2222x1-40 to +85°C
AM20EW-11012SH22-NZ
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-K
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-K-ST
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-K-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-K-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-ST
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012SH22-NZ-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11015SH22-NZ
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11015SH22-NZ-K
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11015SH22-NZ-K-ST
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11015SH22-NZ-K-STD
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11015SH22-NZ-ST
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11015SH22-NZ-STD
2040~160VDC151.3332x1-40 to +85°C
AM20EW-11024SH22-NZ
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11024SH22-NZ-K
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11024SH22-NZ-K-ST
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11024SH22-NZ-K-STD
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11024SH22-NZ-ST
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11024SH22-NZ-STD
2040~160VDC24.8332x1-40 to +85°C
AM20EW-11005S-NZ
2040~160VDC542x1-40 to +85°C
AM20EW-11005S-NZ-K
2040~160VDC542x1-40 to +85°C
AM20EW-11005S-NZ-K-ST
2040~160VDC542x1-40 to +85°C
AM20EW-11005S-NZ-K-STD
2040~160VDC542x1-40 to +85°C
AM20EW-11005S-NZ-ST
2040~160VDC542x1-40 to +85°C
AM20EW-11005S-NZ-STD
2040~160VDC542x1-40 to +85°C
AM20EW-11012S-NZ
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012S-NZ-K
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012S-NZ-K-ST
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012S-NZ-K-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012S-NZ-ST
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11012S-NZ-STD
2040~160VDC121.6672x1-40 to +85°C
AM20EW-11015S-NZ
2040~160VDC151.332x1-40 to +85°C
AM20EW-11015S-NZ-K
2040~160VDC151.332x1-40 to +85°C
171 Records
1 2 3 4 All


Product/serie status Legend
AC EMC Filter
New - RoHS
Standard AC/DC Isolated - RoHS
Standard Switching regulators - RoHS
Standard DC/DC Isolated - RoHS
Standard LED Drivers - RoHS
Custom Product - RoHS
Special conditions may apply
DC–DC Model Numbering System
AMxyr-**####RZK





## - only for dual separated outputs     # - only for triple outputs
