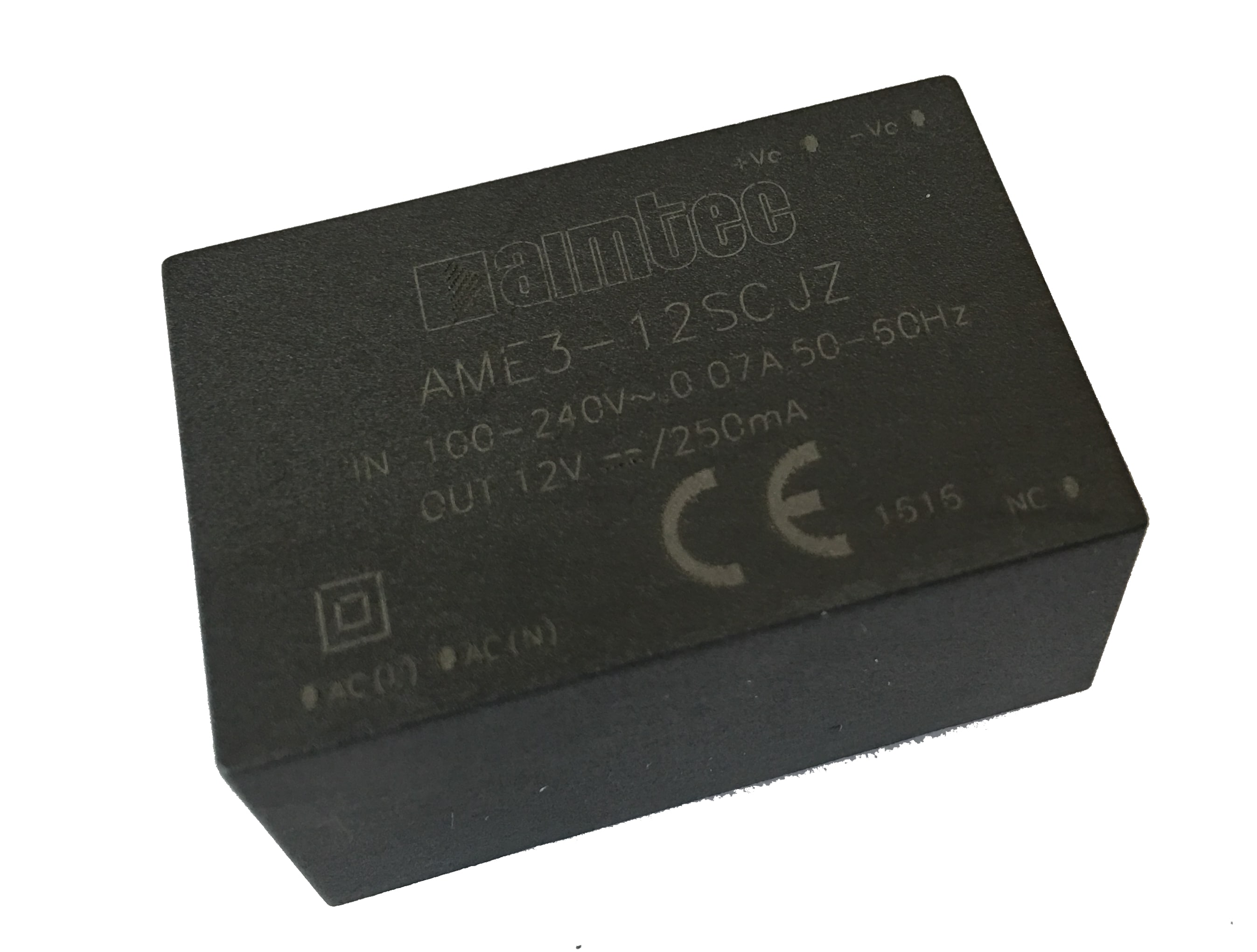

AME3-CJZ

6 models

AC/DC Converters Series

•I/O Isolation 3000VAC •Class II Power supply •Operating Temp: -25°C to +70°C •Input: 85-305VAC, 47-63Hz, or 120-430 VDC •Over current and over voltage Protection •Low no load consumption = 0.3W •Continuous Short Circuit Protection
Standard AC/DC Isolated - RoHS


Wattage3
Input voltage85~264VAC
Output voltage3.3, 5, 9, 12, 15, 24
Output TypeSingle
PackageEncapsulated
Isolation (VAC)3000VAC
Temp (°C)-25°C to 70°C
DatasheetDownload


Select a specific product to see stock availability in your region

Product

Power
(W)
Input
Voltage (V)
Output
Voltage
Max Output
Current(A)
Package

Temp. °C

AME3-12SCJZ
385~264VAC120.25Encapsulated-25°C to 70°C
AME3-15SCJZ
385~264VAC150.2Encapsulated-25°C to 70°C
AME3-24SCJZ
385~264VAC240.125Encapsulated-25°C to 70°C
AME3-3.3SCJZ
385~264VAC3.30.7Encapsulated-25°C to 70°C
AME3-5SCJZ
385~264VAC50.6Encapsulated-25°C to 70°C
AME3-9SCJZ
385~264VAC90.33Encapsulated-25°C to 70°C
6 Records


Product/serie status Legend
AC EMC Filter
New - RoHS
Standard AC/DC Isolated - RoHS
Standard Switching regulators - RoHS
Standard DC/DC Isolated - RoHS
Standard LED Drivers - RoHS
Custom Product - RoHS
Special conditions may apply
AC-DC Model Numbering System
AMEyqxx-*####RZ





## - only for dual separated or triple outputs
