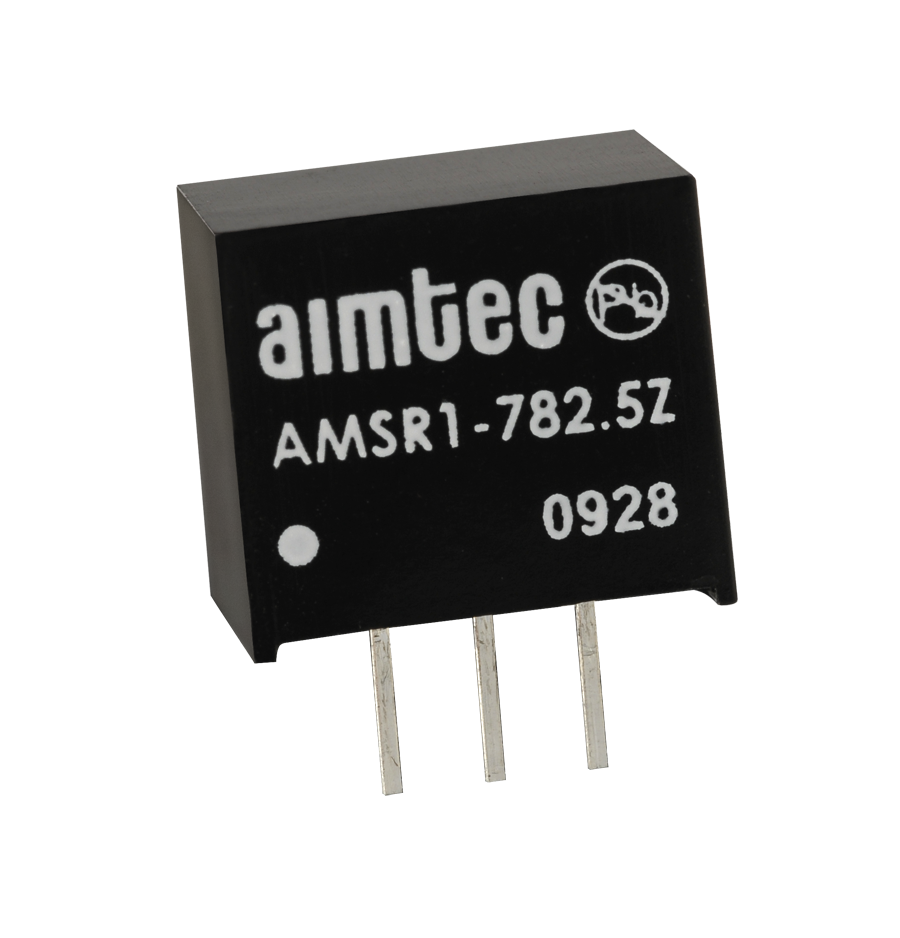

AMSR1-78Z
DC/DC Non Isolated Series
All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load unless otherwise specified.
Wattage
up to 5
Input voltage
4.75~18
,
6.5~18
Output voltage
1.5
,
1.8
,
2.5
,
3.3
,
5
Output Type
Single
Package
SIP3
Isolation (VDC)
Temp (°C)
-40°C to +85°C
Download datasheet:
Low resolution
|
High resolution
Status:
Standard Product - RoHS Compliant
> See all models
Select a specific product to see stock availability in your region
Product
Power
(W)
Input
Voltage (V)
Output
V. Single
Output
V. Dual
Output
V. Triple
Max Ouput
Current(A)
Package
AMSR1-7805Z
5
6.5~18
5
1
SIP3
AMSR1-781.5Z
1.5
4.75~18
1.5
1
SIP3
AMSR1-781.8Z
1.8
4.75~18
1.8
1
SIP3
AMSR1-782.5Z
2.5
4.75~18
2.5
1
SIP3
AMSR1-783.3Z
3.3
4.75~18
3.3
1
SIP3
Product/serie status Legend
New - RoHS Compliant
Standard Product - RoHS Compliant
Custom Product - RoHS Compliant
Special conditions may apply
DC DC Non Isolated Model Numbering System
AM
SR
#
y
-
78
xx
R
Z
