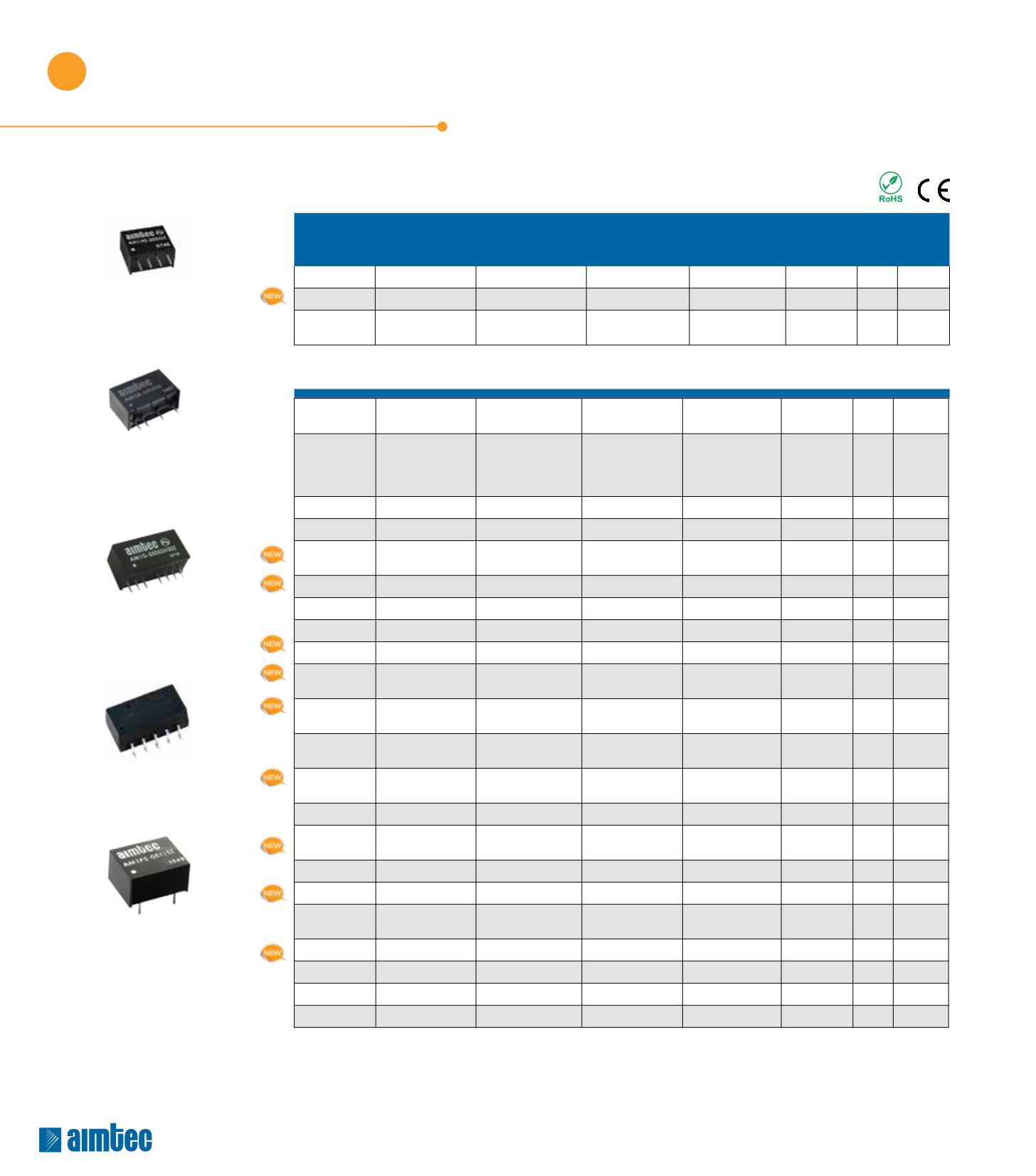

DC/DC converters
Detailed product information is available in the datasheets at
1/4 Watt
SERIES
INPUT
(VDC)
SINGLE OUTPUT
(VDC)
DUAL OUTPUT
(VDC)
DUAL SEPARATED
OUTPUT
(VDC)
ISOLATION
(VDC)
CASE SAFETY
AM1/4L-NZ
5, 12, 24
5, 12
±5
--
1K, 3K
SMD --
AM1/4LS-NZ
3.3, 5, 12, 24
3.3, 5, 9, 12
--
--
1.5K, 3K
SMD --
AM1/4S-Z
5, 12, 15, 24, 48
3.3, 5, 7.2, 9, 12, 15,
18, 24
--
--
1K, 3K
SIP4 CE
1 Watt
AM1A-Z
4.5-9, 9-18, 18-36,
36-75
5, 12, 15, 24
±12, ±15
--
1.5K
SIP6 CE
AM1D-Z
3.3, 5, 12, 15,
24, 48
3.3, 5, 7.2, 9, 12, 15,
18, 24
±3.3, ±5, ±7.2, ±9,
±12, ±15, ±18, ±24
3.3/3.3, 5/5,
7.2/7.2, 9/9, 12/12,
15/15, 18/18,
24/24
1K, 3K, 4K,
5.2K, 6K
SIP7 CE, UL
AM1D-RZ
5, 12, 15, 24, 48
5, 9, 12, 15
±5, ±9, ±12, ±15 --
1K, 3K
SIP7 CE
AM1D-NZ
5, 12, 24
5, 9, 12, 15
±5, ±9, ±12, ±15 --
1K, 3K, 6K SIP7 CE, UL
AM1DC-Z
5, 9, 12, 15, 24
3.3, 5, 9, 12, 15
±3.3, ±5, ±9, ±12,
±15, +15/-9
--
6K
SIP7 CE
AM1DE-Z
5, 12, 24
5, 12, 15
±5, ±12, ±15
--
1.5K, 3K
SIP7 CE
AM1DR-Z
5, 12, 24
3.3, 5, 7.2, 9, 12, 15 --
--
1K, 3K
SIP7 CE
AM1DR-RZ
5, 12, 24
3.3, 5, 7.2, 9, 12, 15 --
--
1K
SIP7 CE
AM1DR-NZ
5, 12, 24
5, 12, 15, 24
--
--
1K, 3K
SIP7 --
AM1DS-Z
5, 12, 24
5, 7.2, 9, 12, 15,
18, 24
±5, ±7.2, ±9, ±12,
±15
--
1K, 3K, 4K,
5.2K, 6K
SIP7
--
AM1DS-NZ
3.3, 5, 12, 15, 24 3.3, 5, 9, 12, 15, 24
±5,±9, ±12, ±15,
±24
--
1.5K, 3K
SIP7 UL
AM1G-Z
4.5-9, 9-18, 18-36,
36-72
3.3, 5, 7.2, 9, 12, 15,
18, 24
±3.3, ±5, ±7.2, ±9,
±12, ±15, ±18, ±24
--
1K, 3K
SIP8 CE
AM1G-NZ
4.5-9, 9-18, 18-36,
36-75
3.3, 5, 9, 12, 15, 24 ±5, ±9, ±12, ±15 --
1.5K, 3K
SIP8 --
AM1L-NZ
3.3, 5, 12, 24
3.3, 5, 9, 12, 15, 24 ±5,±9, ±12, ±15 5/5, 12/12, 15/15 1K, 3K
SMD CE, UL
AM1L-FZ
3.3, 5, 12, 15, 24 3.3, 5, 9, 12, 15
±3.3, ±5, ±9, ±12,
±15
--
1K, 3K
SMD --
AM1LE-NZ
5
5
--
--
3.5K
SMD --
AM1LR-NZ
5, 12, 24
3.3, 5, 12, 15
--
--
1K, 3K
SMD --
AM1LS-NZ
3.3, 5, 12, 15, 24 3.3, 5, 9, 12, 15, 24
±5,±9, ±12, ±15,
±24
--
1.5K, 3K
SMD --
AM1LT-NZ
5, 12
5, 12, 15
--
--
1.5K, 3K
SMD --
AM1M-NZ
5, 12
5, 12, 15
--
--
1.5K
DIP14 --
AM1MR-Z
5, 12, 24
3.3, 5, 7.2, 9, 12, 15 --
--
1K
DIP14 CE
AM1N-NZ
5, 12
5, 9, 12, 15
±5,±9, ±12, ±15 --
6K
DIP24 UL
AM1/4S-Z SIP4
AM1PS-Z DIP8
AM1LS-NZ SMD
AM1G-Z SIP8
AM1A-Z SIP6
Note:
Nominal Input voltages are ±10%, unless otherwise specified.
